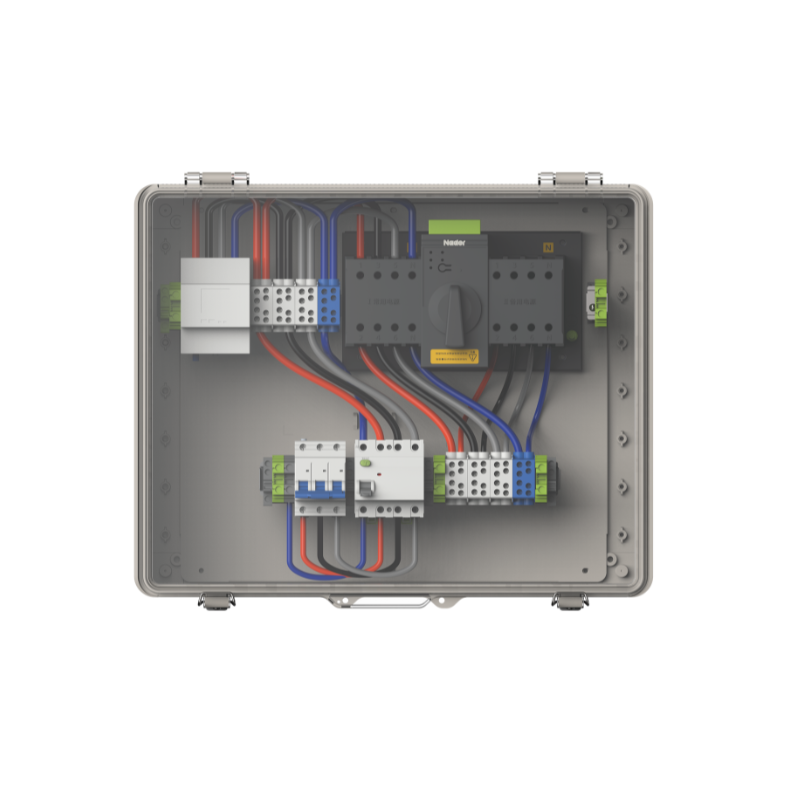

X3-EPS BOX G2

Se conecta a inversores conectados a la red (24 A), inversores autónomos (24 A), red eléctrica (entrada de 63 A/salida de 25 A) y cargas (63 A). Contiene tres componentes de 25 A y funciona a altitudes de hasta 3000 m. Adecuado para entornos con una humedad del 4-100 %, satisface diversas necesidades de distribución de energía.

Descarga de datos

Ventajas del producto

Connects to grid-connected inverters (24 A), stand-alone inverters (24 A), the electrical grid (63 A input/25 A output), and loads (63 A). It contains three 25 A components and operates at altitudes of up to 3000 m. Suitable for environments with 4-100% humidity, it meets a variety of power distribution needs.

Contáctanos

Wide Compatibility

Supports 220/230/240V AC voltage
Dual frequency operation (50/60Hz)
16,500VA max output power

Product Parameters

X3-EPS BOX G2

X3-EPS BOX G2
- GENERAL SPECIFICATION

  Operating temperature range 35~60°C (＞ 45°C derating)
  Altitude <3000m
  Dimensión (AnxAlxPr) 540 × 430 × 202 mm
  Peso 12.5 kg
  Protective class
  Class I
- ON-GRID(Inverter)

  Tensión nominal de CA / Rango de tensión de CA 220/230/240 V
  Rated AC frequency 50 / 60 Hz
  Max output apparent power 16500 VA
  Max output current 24 A
- OFF-GRID(Inverter)

  Rated output voltage 230 V
  Rated AC frequency 50 / 60 Hz
  Max output apparent power 16500 VA
  Max output current 24 A
- GRID(Utility)

  Rated grid voltage 220 / 230 / 240 V
  Rated AC frequency 50 / 60 Hz
  Max input current 63 A
  Max output current 25 A
