Baterías Comerciales e Industriales

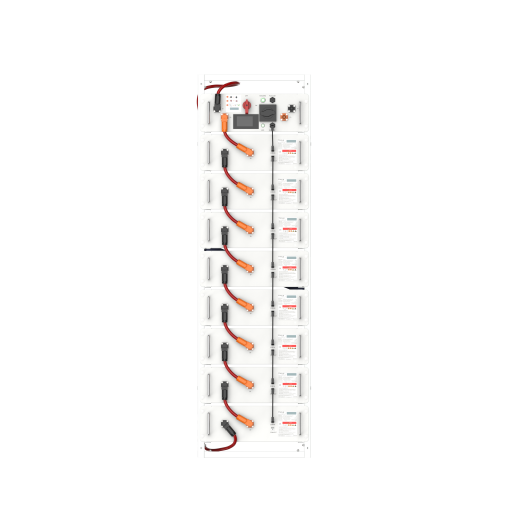

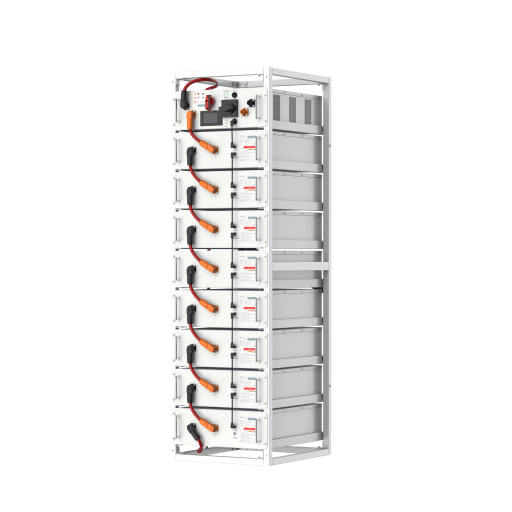

TSYS-HR76

7.68 kWh | LFP 150Ah

Equipado con una batería LFP de alta seguridad, el TSYS-HR76 está diseñado para un almacenamiento de energía fiable y eficiente. Admite un funcionamiento continuo de 1C durante más de 30 minutos, lo que garantiza una salida estable en condiciones exigentes. Con agrupaciones de baterías escalables de 5 a 14 módulos por conjunto, ofrece una configuración flexible para satisfacer las diferentes necesidades de los proyectos.

Descarga de datos

Ventajas del producto

El TSYS-HR76 está diseñado para ofrecer flexibilidad y un funcionamiento fiable, con un rango de temperatura de funcionamiento de 0 °C a 55 °C para la carga y de -20 °C a 55 °C para la descarga. Su diseño escalable permite entre 5 y 14 módulos por conjunto, lo que proporciona un rango de tensión nominal de 256,0 V a 716,8 V. Con una potencia nominal que abarca de 23,0 kW a 64,5 kW, garantiza un rendimiento adaptable en diversas aplicaciones comerciales e industriales de almacenamiento de energía.

Contáctanos

Efficiency

Delivers sustained 1C performance for short duration*

*Under ambient temperature of 25 ± 2°C, each instance of continuous 1C operation should not exceed 0.5 hours

Embedded installation design for rapid deployment
Modular architecture for streamlined maintenance

Intelligence

Automated charge/discharge management
Multi-level protection: overcharge, over-discharge, thermal extremes

Reliability

High-safety LFP battery
Extended cycle life for long-term performance

Flexible Configuration

Scalable battery cluster (5–14 modules per set)
Remote firmware upgrade support
Full compatibility with SolaX inverters

Product Parameters

T-HR38.4 / T-HR38.4P
T-HR46.0 / T-HR46.0P
T-HR53.7 / T-HR53.7P
T-HR61.4 / T-HR61.4P
T-HR69.2 / T-HR69.2P
T-HR76.8 / T-HR76.8P
T-HR84.4 / T-HR84.4P
T-HR92.1 / T-HR92.1P
T-HR99.8 / T-HR99.8P
T-HR107.5 / T-HR107.5P

T-HR38.4 / T-HR38.4P
- SYSTEM SPECIFICATION

  Module quantities
  5
  Nominal energy
  38.4 kWh
  Nominal voltage
  256.0 V
  Max. charge / discharge current
  150 A
  Rated power
  23.0 kW
- Módulo de batería

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensión (AnxAlxPr)
  450 × 180 × 580 mm
  Peso
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR46.0 / T-HR46.0P
- SYSTEM SPECIFICATION

  Module quantities
  6
  Nominal energy
  46.0 kWh
  Nominal voltage
  307.2 V
  Max. charge / discharge current
  150 A
  Rated power
  27.6 kW
- Módulo de batería

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensión (AnxAlxPr)
  450 × 180 × 580 mm
  Peso
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR53.7 / T-HR53.7P
- SYSTEM SPECIFICATION

  Module quantities
  7
  Nominal energy
  53.7 kWh
  Nominal voltage
  358.4 V
  Max. charge / discharge current
  150 A
  Rated power
  32.2 kW
- Módulo de batería

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensión (AnxAlxPr)
  450 × 180 × 580 mm
  Peso
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR61.4 / T-HR61.4P
- SYSTEM SPECIFICATION

  Module quantities
  8
  Nominal energy
  61.4 kWh
  Nominal voltage
  409.6 V
  Max. charge / discharge current
  150 A
  Rated power
  36.8 kW
- Módulo de batería

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensión (AnxAlxPr)
  450 × 180 × 580 mm
  Peso
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR69.2 / T-HR69.2P
- SYSTEM SPECIFICATION

  Module quantities
  9
  Nominal energy
  69.1 kWh
  Nominal voltage
  460.8 V
  Max. charge / discharge current
  150 A
  Rated power
  41.4 kW
- Módulo de batería

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensión (AnxAlxPr)
  450 × 180 × 580 mm
  Peso
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR76.8 / T-HR76.8P
- SYSTEM SPECIFICATION

  Module quantities
  10
  Nominal energy
  76.8 kWh
  Nominal voltage
  512.0 V
  Max. charge / discharge current
  150 A
  Rated power
  46.0 kW
- Módulo de batería

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensión (AnxAlxPr)
  450 × 180 × 580 mm
  Peso
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR84.4 / T-HR84.4P
- SYSTEM SPECIFICATION

  Module quantities
  11
  Nominal energy
  84.4 kWh
  Nominal voltage
  563.2 V
  Max. charge / discharge current
  150 A
  Rated power
  50.6 kW
- Módulo de batería

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensión (AnxAlxPr)
  450 × 180 × 580 mm
  Peso
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR92.1 / T-HR92.1P
- SYSTEM SPECIFICATION

  Module quantities
  12
  Nominal energy
  92.1 kWh
  Nominal voltage
  614.4 V
  Max. charge / discharge current
  150 A
  Rated power
  55.2 kW
- Módulo de batería

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensión (AnxAlxPr)
  450 × 180 × 580 mm
  Peso
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR99.8 / T-HR99.8P
- SYSTEM SPECIFICATION

  Module quantities
  13
  Nominal energy
  99.8 kWh
  Nominal voltage
  665.6 V
  Max. charge / discharge current
  150 A
  Rated power
  59.8 kW
- Módulo de batería

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensión (AnxAlxPr)
  450 × 180 × 580 mm
  Peso
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR107.5 / T-HR107.5P
- SYSTEM SPECIFICATION

  Module quantities
  14
  Nominal energy
  107.5 kWh
  Nominal voltage
  716.8 V
  Max. charge / discharge current
  150 A
  Rated power
  64.5 kW
- Módulo de batería

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensión (AnxAlxPr)
  450 × 180 × 580 mm
  Peso
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
